Hepafilters for Cleanrooms
TripleAir FLUIDSEAL TERMINAL HOOD housing is an airtight ceiling filter module designed for use in turbulent mixing spaces where high-quality air with HEPA filtration is required. Changing the HEPA filter element on the room side ensures the integrity of the ceiling and duct connection. A gel seal and a replaceable HEPA filter provide absolute airtightness and a positive seal between the filter element and the housing.
Typical applications include supply and exhaust systems for:
- Pharmaceutical production and biotechnology laboratories
- Hospitals and healthcare facilities
- Optical industries
- Food and beverage processing

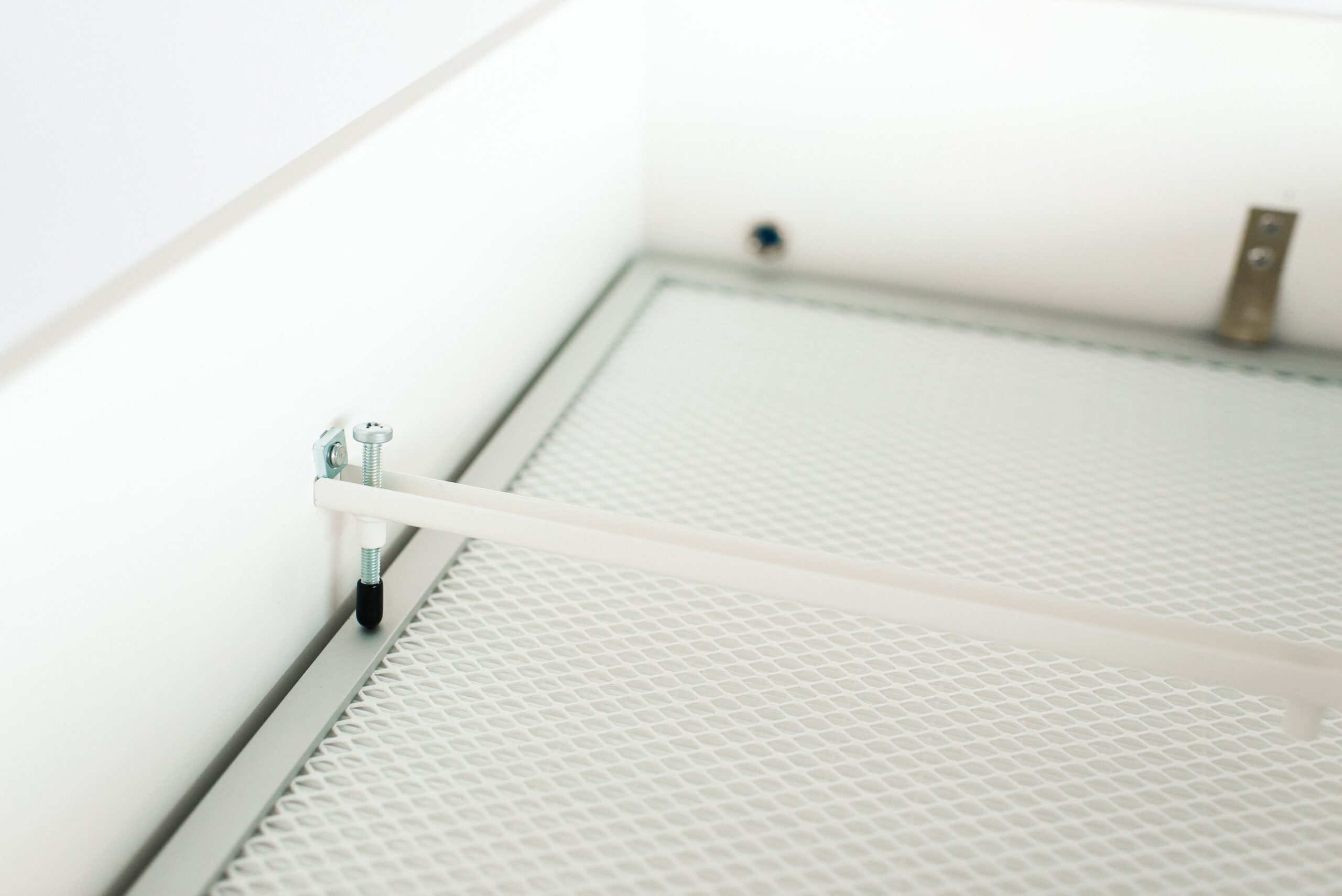

TripleAir FLUIDSEAL TERMINAL HOOD housings are made from black steel and finished with an epoxy powder coating in white RAL9010. A differential pressure port is included for room-side testing, with suspension loops on the top for hanging. The unit features concealed grille mounting and can be equipped with spin cap, variable air volume, 4-way throw, or perforated plate diffusers. Diffuser installation is via the filter clamp bar, accessible through a removable core. Filter installation is performed from the clean side of the room and can be easily completed by one person.
TripleAir FLUIDSEAL filters feature an integrated groove filled with a non-outgassing polyurethane gel, ensuring an airtight seal with the housing. Available in classification ranges from E11-U17 according to EN1822.
