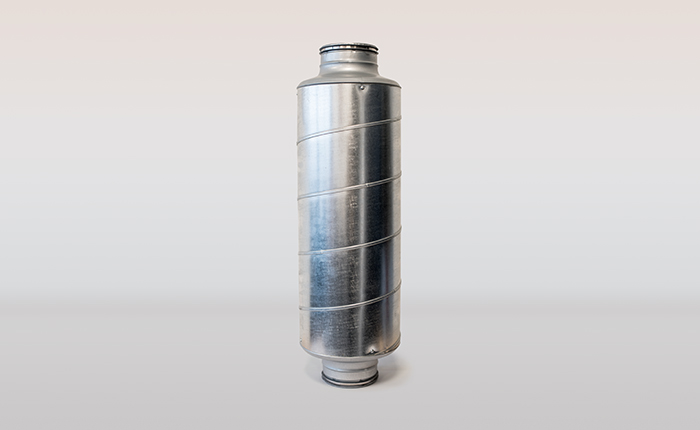

WSRS

Introduction

The WSRS sound attenuators are specifically crafted from robust materials to enhance acoustic performance within various ventilation systems. Their construction makes them particularly effective in reducing sound transmission through air ducts, contributing to a quieter and more comfortable environment.

Features

• Material: Made from durable galvanized steel with a spiral-seamed outer shell and a perforated inner tube.
• Sound Absorption: Equipped with non-flammable and dust-resistant sound-absorbing material between the inner and outer tubes.
• Versatility: Available in configurations with an absorber layer thickness of both 50 mm and 100 mm, depending on the required sound insulation.
• Temperature and Speed Resistance: Suitable for use at temperatures up to 80°C and airflows up to 20 m/s.

Product Description

The WSRS-50 and WSRS-100 models offer flexible sound attenuation solutions with different thicknesses of absorbing material to meet specific acoustic requirements. The material used ensures a high level of noise reduction without compromising airflow efficiency.

Technical Data

• Sound Insulation Thickness:
  • WSRS-50: approx. 50 mm
  • WSRS-100: approx. 100 mm
• Diameter Options:
  • Diameters from 80 to 300 mm are available in lengths of 300, 600, 900, and 1200 mm.
  • Diameters from 315 to 500 mm offer lengths of 600, 900, and 1200 mm.
• Color Options: Standard in RAL 9010 with customization available upon request.

These sound attenuators are essential for reducing sound transmission and improving overall acoustics in complex air handling systems.
