ADK

Introduction

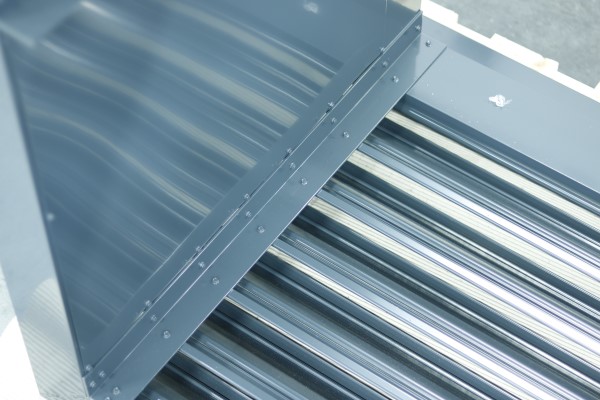

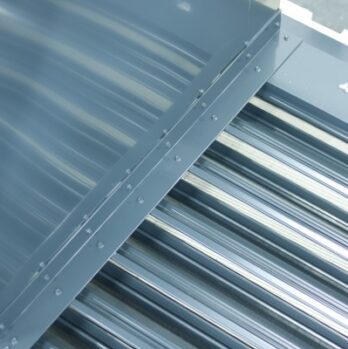

These penthouse louvers are suitable for both intake and exhaust air. The lower blade serves as an additional drip edge, enhancing the effectiveness of the water barrier. The blades are specifically designed to handle optimal air velocities, contributing to the efficiency of airflow.

Features

• Water Barrier: Double water barrier in the blades effectively prevents water ingress.
• Air Velocity: Recommended air velocity of 2.5 m/s for intake and 4 m/s for exhaust.
• Efficient Free Area: Provides an effective free area of up to 55%, depending on the installation height.
• Versatility: Suitable for a combination of intake and exhaust with various models adapted for specific applications.

Product Description

• ADK: Standard model for air intake and exhaust, with anodized finish and optionally available in any RAL color.
• ADK-Combi: Combines horizontal intake and exhaust with a partition to minimize short-circuiting of air flows.
• AVDK and AVDK-Combi: Specifically designed for vertical exhaust with a double drip edge that effectively drains rainwater.
• Options:
  • Mesh Types: Various mesh types such as galvanized, stainless steel, and plastic bird mesh.
  • Roof Stands: Available with standard and insulated roof stands, with or without a penetration duct.
  • Mounting Options: Including angle brackets and strips for robust installation.
