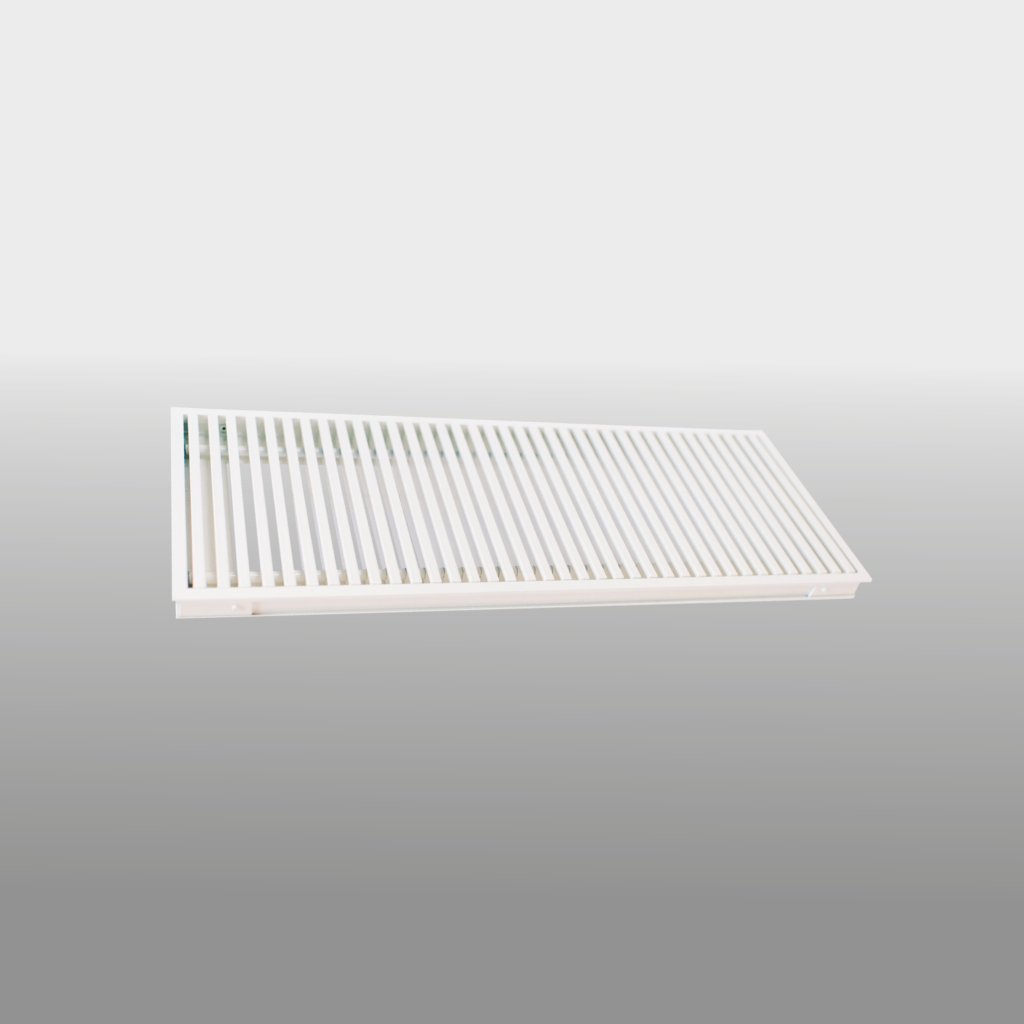

Floor grilles ACG - ACGV
The ACG series floor grilles by Waterloo are specifically designed for seamless and recessed installation in various floor types, providing excellent air distribution in both commercial and residential settings.
Introduction

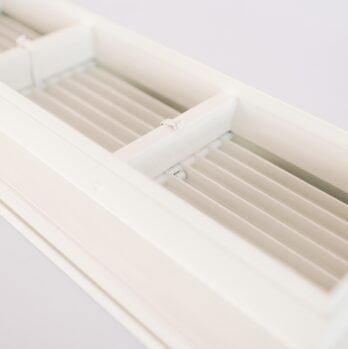

The ACG and ACGV floor grilles are made of robust extruded aluminum and offer options for blades in both length (ACG) and width (ACGV) directions. They are designed for easy integration into recessed floors with an option for easy removal of the blade element.
Features

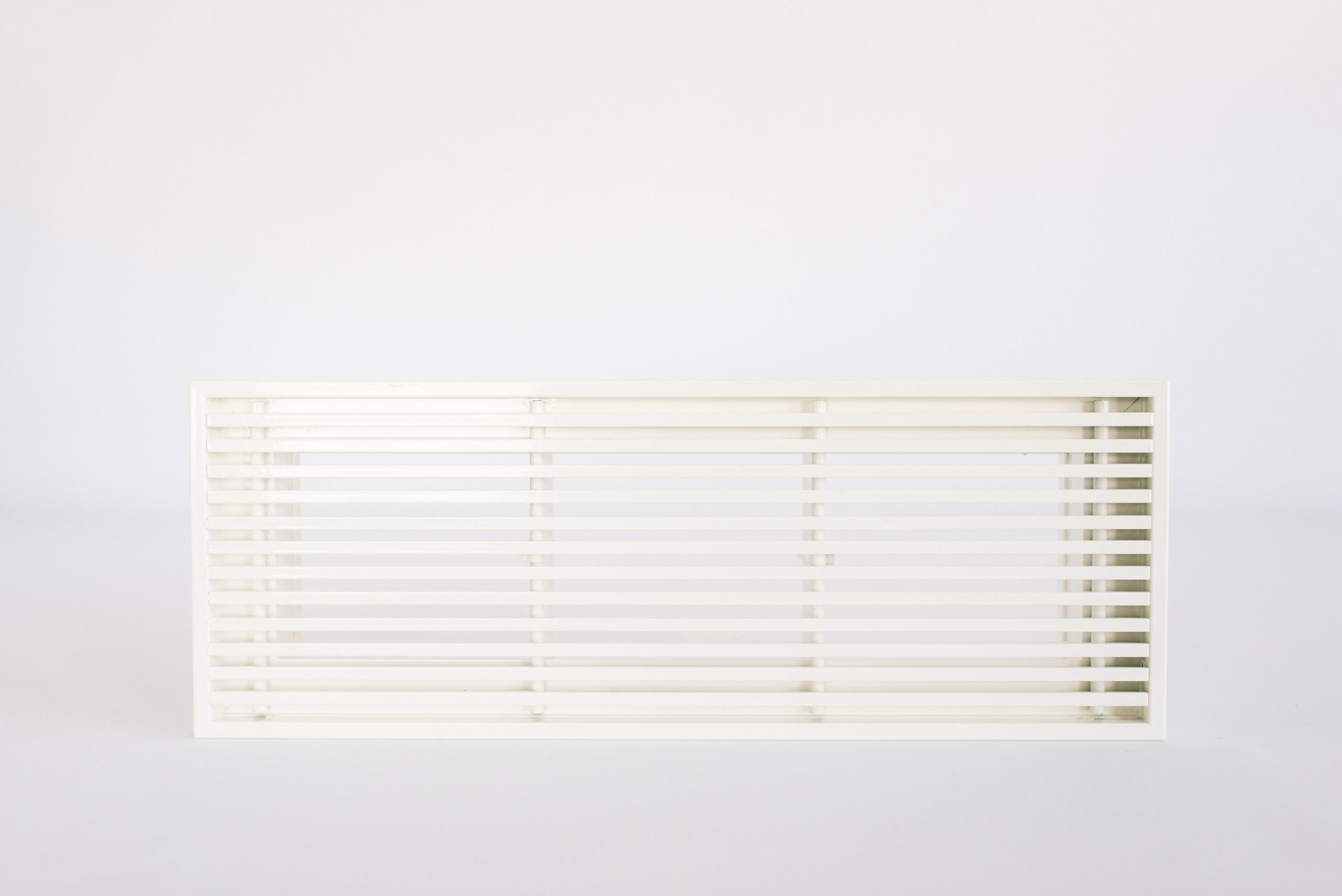

- ACG: Floor grille with blades parallel to the long side.
- ACGV: Floor grille with blades parallel to the short side.
- ACG1-12: Grille with straight blades, blade pitch of 12.5mm.
- ACG15-15: Grille with angled blades, blade pitch of 15mm.
- OBSS: Manually operated volume control with an Allen key.
- DT-2M: Drain register, mounted in the duct for efficient moisture drainage.
- Durability and maintenance: Walkable grilles with solid construction, easy to maintain and clean.
Technical Data
- Finish: Standard natural anodized, with other colors available upon request.
- Weights: Ranging from 19.0 kg/m² for the ACG1-12 to 9.0 kg/m² for the DT-2M.
- Dimensions: Available from 125 x 75 mm to 1500 x 425 mm for ACG and up to 1200 x 425 mm for ACGV.
- Foot load: Can support a maximum foot load of up to 960 kg, depending on the height and type.
The ACG and ACGV series are ideal for spaces that require a high-quality, durable, and aesthetically pleasing floor grille solution.
