VKT

Always a suitable solution

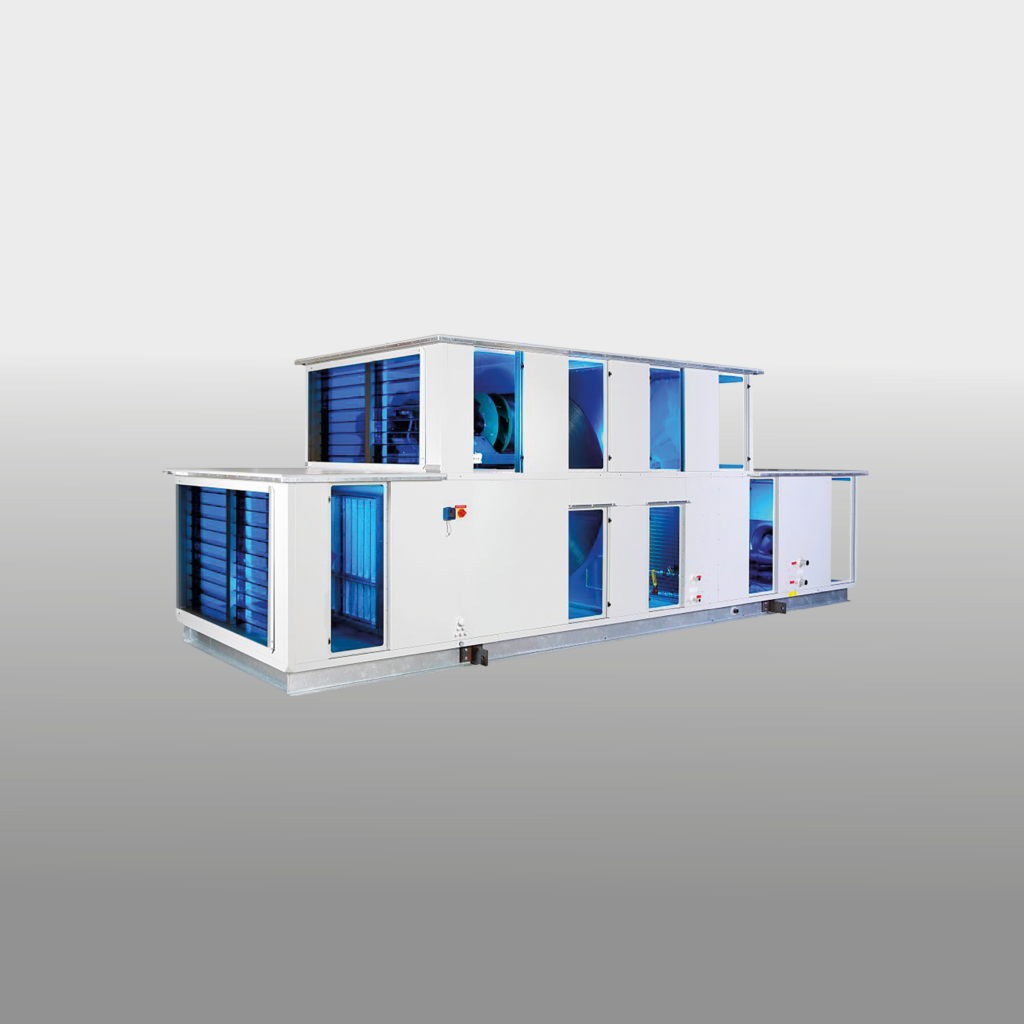

The VKT (Verhulst Thermal Units) is a custom-selected air handling unit, where the installer chooses to provide their own control technology and field equipment. Of course, if desired, we can supply and install the sensors and actuators. The VKT can be considered our most comprehensive ‘conventional unit’ and offers the best foundation for any project.

With the VKT, everything is possible

The VKT can be customized as desired, with all possibilities to manage the control technology and install field equipment yourself. Fully tailored to your needs, including complete project support. This air handling unit can be delivered in one piece, reducing or eliminating the need for coupling and hoisting costs. If desired, we arrange this with our trusted transporter/crane specialists. Since the VKT is modularly designed, it is ideal for replacement in existing situations. Complete assembly can be done on-site. We also support project preparation and calculators. BIM models are immediately available.

Possible components:

• Energy heat recovery
• twincoil
• heat wheel
• cross-flow
• plate heat exchanger
• Inspection sections
• Humidification section
• steam or adiabatic Fans
• plug fans
• IE2, IE3, IE4
• EC
• Sound attenuators
• Heating
• DX or steam
• Cooling
• DX or dehumidification
• Filters
• Coarse, ePM1, ePM1.5, ePM10
• carbon
• chemical
• archives
• HEPA
• Support frame built per project
• Technical room possible
• ATEX if desired
• Surface treatment for swimming pools

Standard advantages of the VKT:

Our VKT is entirely designed, developed, and produced in our own facility in Drunen. With the VKT, you receive a ‘conventional unit,’ fully customized to your project-specific needs. The VKT is:

• Eurovent certified
• Specially modularly constructed
• Always completely thermal bridge-free
• Delivered with double-walled panels
• Fully compliant with NEN-EN 1886
• Standard L1, class D1(M), TB2, and T2
• Supplied in Sendzimir galvanized steel
• Powder coating in various colors available
• Powder coating also applied to cut edges
• Equipped with unique clamp-click connections, no weld seams
• Energy efficient and sustainable
• Fully circular design
• Low-maintenance
• Smooth surfaces: clean, hygienic, easy to maintain, and reduces energy consumption
• More than 10 years warranty possible
• Appearance is calm and fully adaptable to the wishes of architects or end-users
• Delivery in one piece possible: no or reduced coupling and hoisting costs
• Complete on-site assembly possible
• BIM models immediately available
